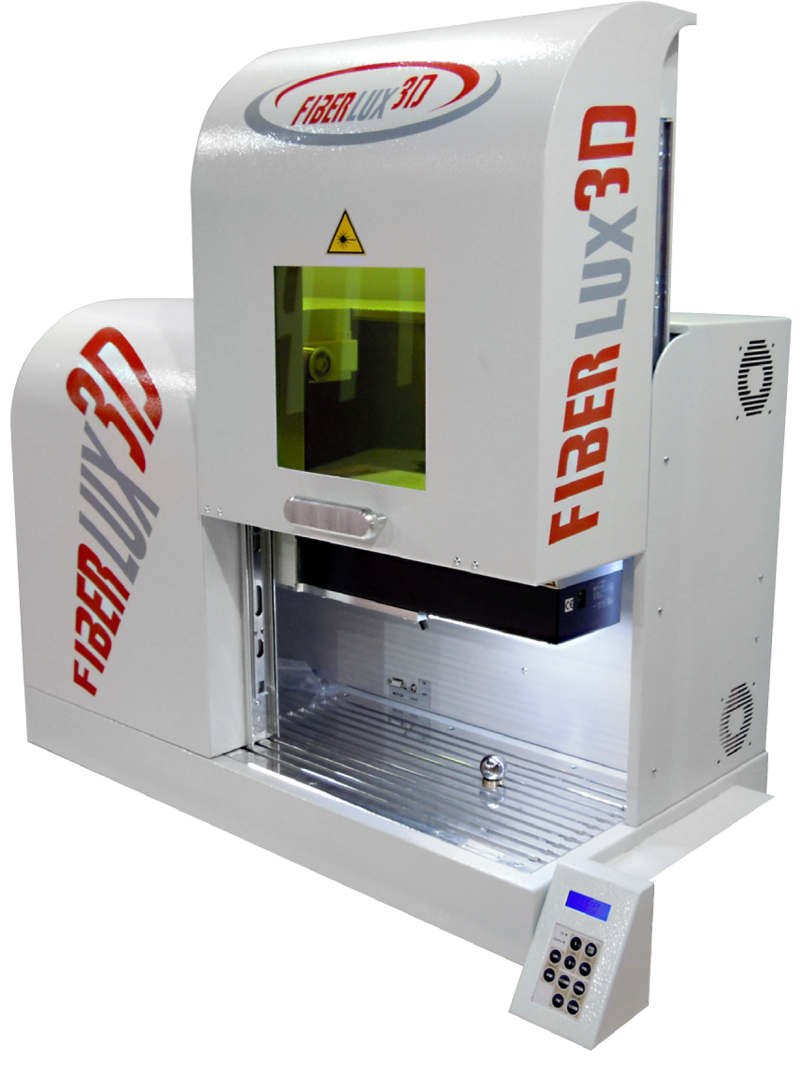

FiberLux-3D
E in grado di incidere file tridimensionali regolando automaticamente I'altezza di fuoco seguendo con estrema precisione il profilo dell'oggetto. Ideale per l'incisione di oggetti inclinati o sferici.
Able to engrave tridimensional files adjusting automatically the focus height and following with extreme precision the object outline. The best solution for engraving inclined or spherical objects.
| FIBERLUX 3D 20 | FIBERLUX 3D 30 | FIBERLUX 3D 40 | |
|---|---|---|---|
| Output power | 20 W | 30 W | 40 W |
| Wave lenght | 1064 nm | ||
| Power supply | 1F, 230 V AC, 10°, 50/60 Hz | ||
| Beam quality (M2) | < 2 | < 2.5 | < 2.5 |
| Absorbed power | 400 W | ||
| Dimensions (lxpxh) cm | 90x46x61 | ||
| Weight | 85kg | ||
| Peak power | 20 kW | 30 kW | 35 kW |
| Type of source | fiber | ||
| Max frequency | up to 1000 kHz | ||
| Cooling system | air | ||
| Pulse duration | 10-200 nsec | ||
| Laser class | Class 4 | ||
| Field size (mm x mm) | 180x180 | ||
| Speed of galvo head (mm/s) | up to 30.000 | ||
| Working distance (mm) | 195.5 | ||
| Average spot diameter 1/e2 (μm) for M2=1.0 |
39 | ||
| Resolution (μm) | <6 | ||
| Focus range in Z direction (mm) | 41.4 |
